QD472

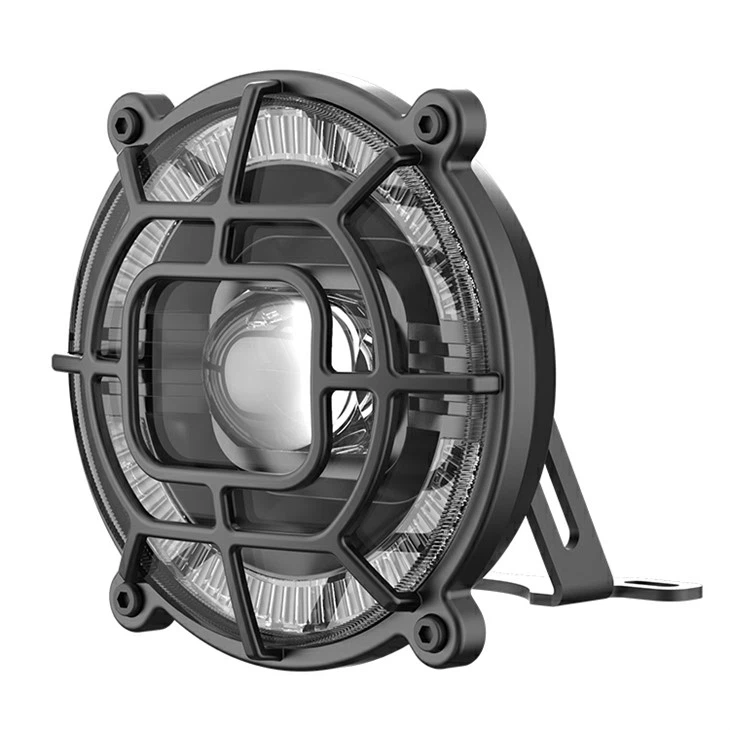

D472 light is a multi-function headlight with daytime light, low beam and high beam. It adopts high-quality LED light source and all-aluminum shell to ensure high brightness and meet the heat dissipation requirements of LED. There are currently three versions available to meet the needs of e-bike assembly factory for different functions and costs.
Specification
| Approval | ECE Class B / CE |
| Size | L145.1mm W98.3mm H145.1mm |
| Weight | 173.5g |
| Wiring | 4 Pins+ 2 Pins |
| Waterproof | IPX5 |
| Voltage | 12V / 36-48V / 72V |
| Center Luminance | Low beam:100LUX ; High beam:230LUX |
| Light Source | LED |
| Horn Decibel | 80±5dB |
| Horn Voltage | DC 36-48V / 12V |
| Power |
Day beam 11W; Low beam 8.5W; High beam 8.5W
|
QD472-4
Specification
| Approval | |
| Size | L145mm W145mm H116.5mm |
| Weight | 173.5g |
| Wiring | 2 Pins |
| Waterproof | IPX5 |
| Voltage | DC 48V |
| Center Luminance | Low beam: 60LUX |
| Light Source | LED |
| Horn Decibel | 80±5dB |
| Horn Voltage | DC 36-48V / 12V |
| Power | Low beam 5W |
