Description

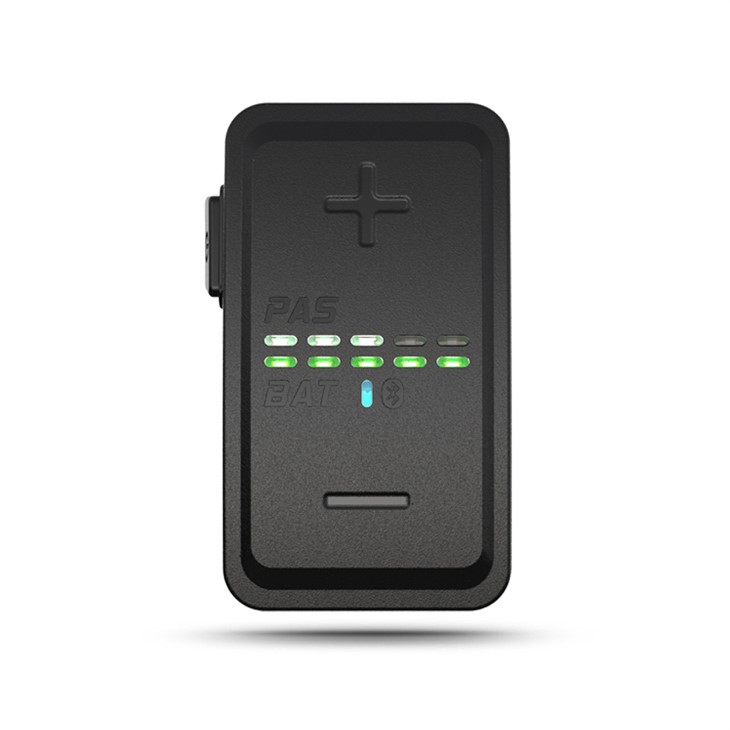

DZ40BT
 |
 |
 |
 |
| 1.3"Monochrome LED display type | Dark semi transparent PC window material | 4 Hard button | Arc display interface,hide button |
Extremely simple surface display design, completely hide the operation button.
It is not only the display screen but also the operation button, which ensures the operation feel and controls the product size to the extreme.
High quality alloy material;
No screw assembly process;
Narrow frame design;
It is applicable to EN 15194-2017.
Specification
| SPECIFICATIONS | |
| Dimensions/ Size | L 48mm W 27mm H 44mm |
| Weight (g) | 28g |
| Material | PC/ABS/PA |
| Operating Temperature | -20°C ~ 60°C |
| Core Data | |
| Display Type | LED |
| Nominal Voltage | DC 24V/36V/48V |
| Current | 18mA ～ 25mA /36V |
| Mounting Parameters | |
| Communication | UART/CAN |
| Handlebar for Holding | Ø 22.2 |
| Display Information | PAS level /speed / battery indicator / light status / error alarm / walk etc. |
| Tests& Certifications | |
| Waterproof | IPX5 |
| Cerifications | RoHS/CE |
