Description

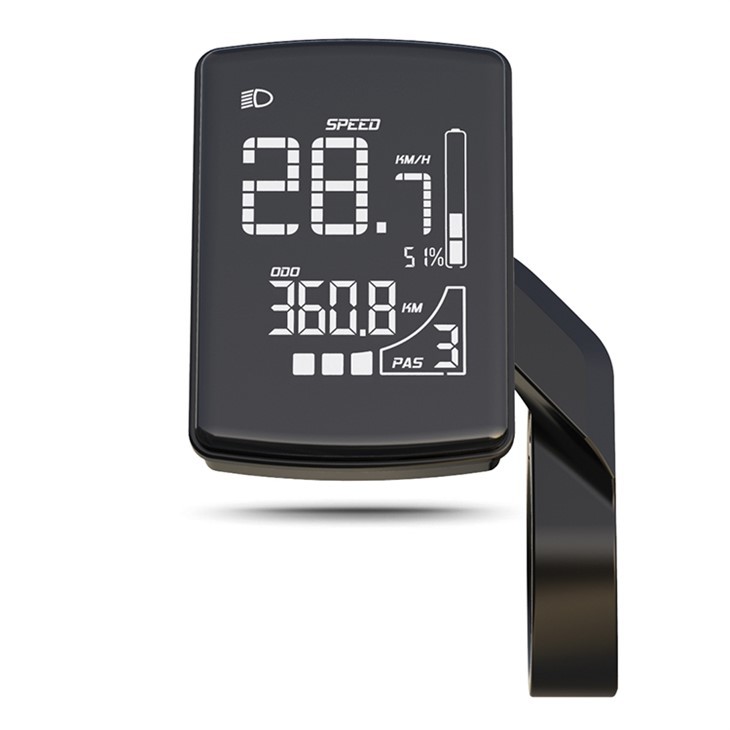

DZ47
 |
 |
|
|
| 2.2" Display screen,LCD | Tempered galss window materail | With 2.5D shape craft | Light sensor |
2.2" Display screen,LCD with a unilaterally changeable direction fixed bracket.
Specification
| SPECIFICATIONS | |
| Dimensions/ Size | L 86mm W 44mm H 64mm |
| Weight (g) | 80g |
| Material | ABS/PA |
| Operating Temperature | -20°C ~ 60°C |
| Core Data | |
| Display Type | 2.2"segment LCD |
| Nominal Voltage | DC 24V/36V/48V |
| Current | 20mA~42mA /36V |
| Mounting Parameters | |
| Communication | UART/CAN |
| Handlebar for Holding | Ø 22.2/25.4/31.8 |
| Display Information | PAS level / speed / trip /ODO / light status / battery indicator /error alarm / walk etc. |
| Data Port | Bluetooth(Optional) |
| Tests& Certifications | |
| Waterproof | IPX5 |
| Cerifications | RoHS/CE |
